Pmod NAV: 9-axis IMU Plus Barometer

Fügen Sie Pmod NAV zu Ihren Hardware-Plattformen und Systemen hinzu, um die Navigationsfähigkeit zu verbessern.

Artikelnummer VAR-827000856

Nicht auf Lager, Nachbestellung läuft
Voraussichtliche Versandverzögerung über den verfügbaren Bestand hinaus: 2 Monate

37,00 EUR *
Inhalt 1 Stück
Loggen Sie sich ein und erhalten Sie bessere Preise. Oder kontaktieren Sie uns und fragen Sie nach dem B2B-Status .

* Exkl. MwSt. exkl. Versandkosten

Flexible peripheral modules for all your designs

Pmod™ devices are Digilent’s line of small I/O interface boards that offer an ideal way to extend the capabilities of programmable logic and embedded control boards. They allow sensitive signal conditioning circuits and high-power drive circuits to be placed where they are most effective - near sensors and actuators.

Pmod modules communicate with system boards using 6, 8, or 12-pin connectors that can carry multiple digital control signals, including SPI and other serial protocols. Pmod modules allow for more effective designs by routing analog signals and power supplies only where they are needed, and away from digital controller boards.

Overview Pmod NAV

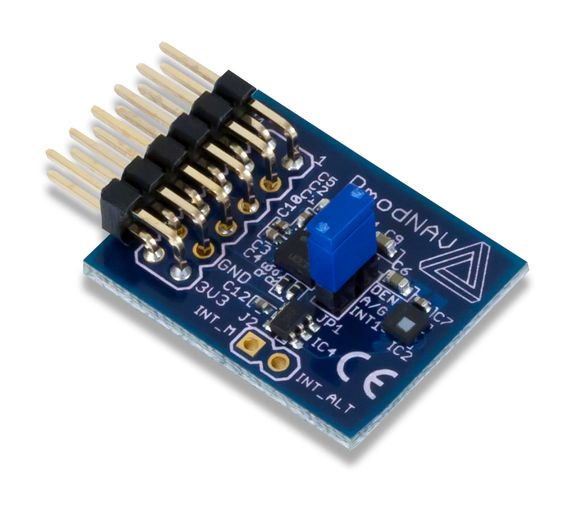

The Digilent Pmod NAV uses the STMicroelectronics LSM9DS1 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer, plus the STMicroelectronics LPS25HB digital barometer to provide users with 10 degrees-of-freedom (DoF) functionality. The Pmod NAV provides a variety of orientation related data, allowing users to easily determine the exact position the module is in and where it is headed. With 16-bit full scale registers for acceleration, rotation, and orientation, and 24 bits of resolution for pressure data, users can easily figure out if their moving robot is falling over, how high in the air their hot air balloon is located, or which direction they are facing.


  • STMicroelectronics LSM9DS1 iNEMO inertial module
  • STMicroelectronics LPS25HB MEMS pressure sensor: 260-1260 hPa absolute digital output barometer
  • ±2/±4/±8/±16 g linear acceleration full scale
  • ±245/±500/±2000 dps angular rate full scale
  • ±4/±8/±12/±16 gauss magnetic full scale
  • 260-1260 hPa piezoresistive pressure sensor
  • Embedded temperature sensors for compensation
  • 12-pin Pmod connector with SPI interface
  • Follows Digilent Interface Specification Type 2A
  • Library and example code available in resource center

3 Target Applications

  • Robotics
  • Indoor navigation
  • Weather station equipment

Scope of Delivery

  • Pmod NAV in a custom antistatic Pmod packaging

Pmod Hardware Compatibility Guide

Digilent's guide about determining hardware compatibility.


  • Manufacturer: Digilent Inc.
  • Manufacturer's article name: Pmod NAV: 9-axis IMU Plus Barometer
  • Manufacturer's article number: 410-326


Other Digilent products are available on request.

Art.-ID 100744
Zustand Neu
Legacy item ID 2619
Modell 410-326
Hersteller Digilent Inc.
Herstellungsland Taiwan
Inhalt 1 Stück
Gewicht 11 g
Netto-Gewicht 11 g
