Trenz Electronic GmbH

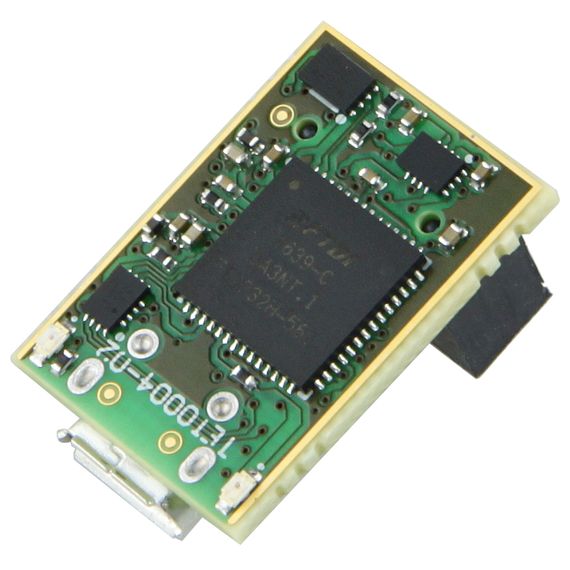

ARROW USB Programmer2 for development with Intel FPGAs - 2.54 mm header ()
Arrow USB Programmer2 is an FT2232H based JTAG Adapter supported by Intel Quartus.
Référence de l’article VAR-827000715
En rupture de stock, réapprovisionement en cours
Délais d'exécution 3 jours. Pour les commandes d'une valeur totale nette inférieure à 70 euros, nous facturerons des frais de traitement de 15 euros.
29,51 EUR
*
Contenu
1 pièce
* Hors TVA hors Frais de livraison
This article is the replacement for the TEI0004-01.
Features
- Supported by Intel Quartus (JTAG Mode only)
- Based on FTDI FT2232H USB2 Interface
- JTAG connector: standard 2 x 5 pin header
- Intel JTAG Compatible Pinout
- USB: MicroUSB connector, USB 2.0 HS support
- Voltage levels supported: 1.8 to 3.3 V
- Very small size: 13.5 x 22 mm
- Additional UART Channel available
- RED activity LED
- GREEN Power-on LED
Important Note
Modules produced after June 2020 are no longer compatible with the older drivers.
Please install driver version 2.4 or newer.
See also driver revision change history.
Scope of Delivery
- 1 x TEI0004-02 ARROW USB Programmer2
Additional Information
All modules produced by Trenz Electronic are developed and manufactured in Germany.
| ID de l’art. | 100603 |
| État | |
| ID de l'ancien article | 2737 |
| Modèle | TEI0004-02 |
| Fabricant | Trenz Electronic GmbH |
| Pays de fabrication | Allemagne |
| Contenu | 1 pièce |
| Poids | 23 g |
| Poids net | 23 g |
