Alinx AXKU115 FPGA Dev Board & Kit with AMD Kintex US XCKU115
The AXKU115 is a professional-grade FPGA development platform featuring AMD/Xilinx Kintex UltraScale XCKU115, dual 512Mbit QSPI Flash, four 40G QSFP+ interfaces, four FMC HPC connectors, and Gigabit Ethernet, designed for high-speed data processing, industrial control, and scalable hardware acceleration.
Artikelnummer VAR-827003363
Hersteller-Teilenummer: AXKU115
Taric/custom code:
Artikel befindet sich in und wird versendet von: Riedlingen, Deutschland
Product Description

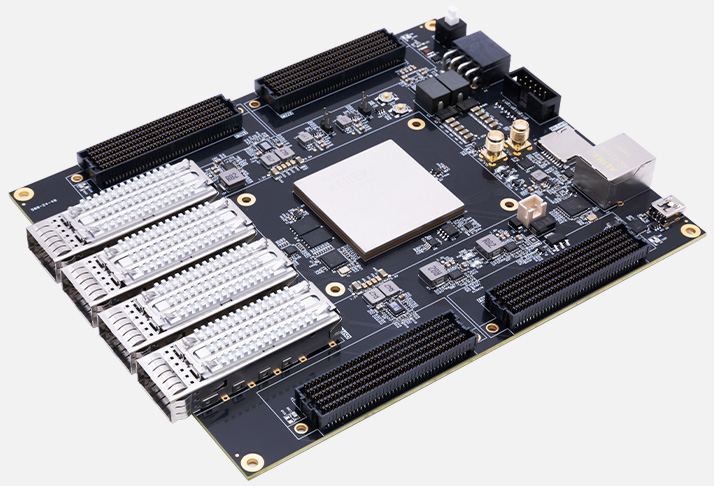

The AXKU115 FPGA development board, equipped with the AMD/Xilinx Kintex UltraScale XCKU115 device, delivers standout performance featuring dual 512Mbit QSPI Flash, four 40G QSFP+ optical interfaces, four FMC HPC expansion connectors, and Gigabit Ethernet. It supports a wide range of FMC modules, including high-speed data acquisition, video interfaces, and custom I/O applications.
Applications
Data Center
● Network Acceleration
● Storage Acceleration
Industrial, Science, Medical
● Medical Imaging Transmission
● Machine Vision
Wired Communications
● PON Access
● Optical Transport Network
Wireless Communications
● Wireless Radio
● Baseband
Key Features
- ● AMD/Xilinx Kintex Ultrascale :
◆ 1,451K Logic Cells
◆ 1,920 DSP Slices
◆ 64x GTH Transceivers
● 2 x 64 MB QSPI Flash
● 4x FMC HPC
● 4 x 40G QSFP+
● 1 x Gigabit Ethernet
● 1 x USB-UART - ● 1 x MicroSD
● 2x SMA
● 2x JTAG
● 1 x EEPROM 24LC04
● 1 x Temperature sensor LM75A
● 4 x LED (1 x PWR + 1 x DONE + 2 x User)
● 2 x KEY
● 12V single supply
● Dimensions: 177 x 143 mm form factor
What's Inside the Box
ALINX AMD Xilinx Kintex Ultrascale XCKU115 FPGA development board and Some accessories
| development board | 1 | USB Downloader Cable / set | 1 |
|---|---|---|---|

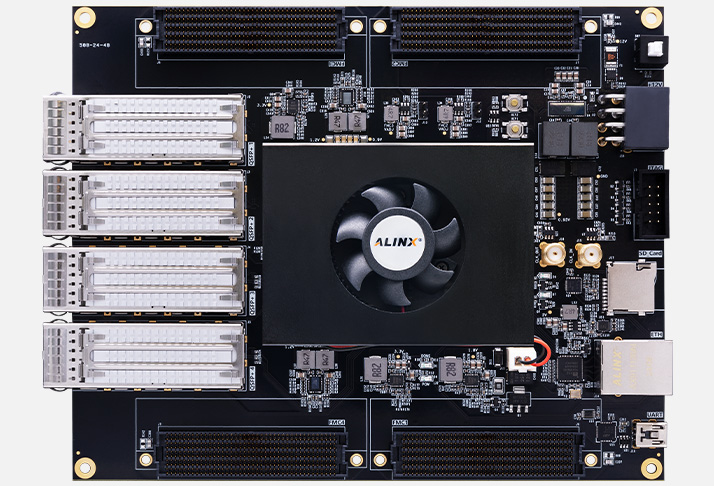

| Mini USB Cable | 1 | Heatsink Kit (preinstalled) | 1 |
| 12V Power Adapter | 1 |
| Technisches Merkmal | Wert |
|---|---|
| Art.-ID | 102879 |
| Zustand | Neu |
| Legacy item ID | |
| Modell | AXKU115 |
| Hersteller | |
| Herstellungsland | Deutschland |
| Inhalt | 1 Stück |
| Gewicht | 1000 g |

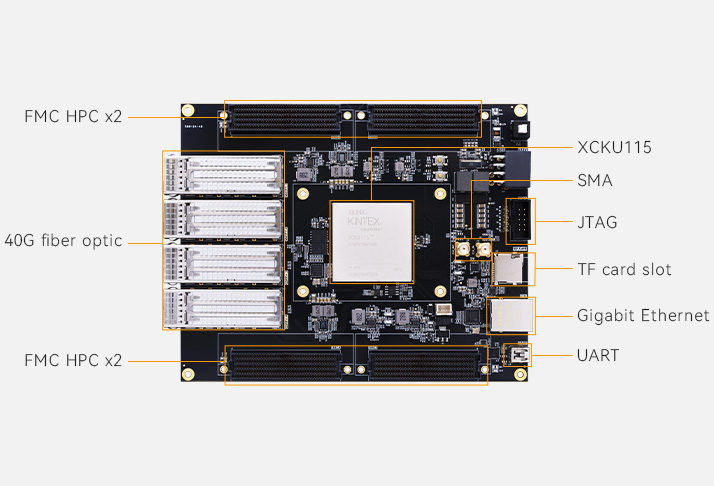

Board Features

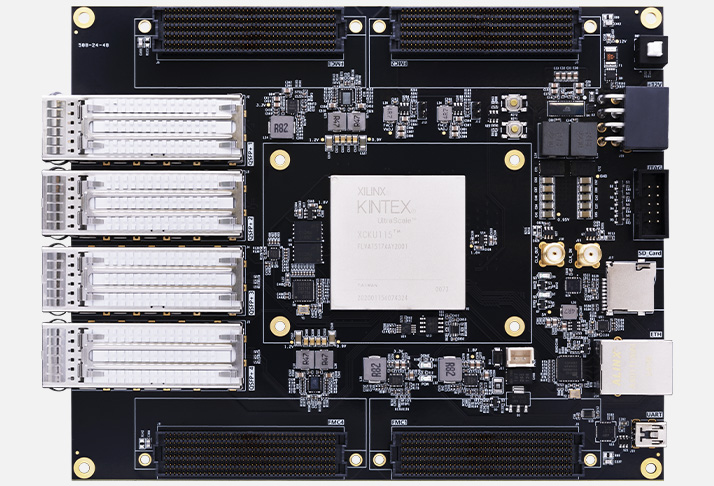

Featuring the AMD/Xilinx Kintex Ultrascale XCKU115-2FLVA1517I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale based application.
