1. LTE CAT 1 with 2G Fallback
2. Solar Charging
3. Up to 10-year standby time
4. Waterproof, compliant to IP67
5. Supports BLE 5.0
6. Supports WiFi positioning
7. Ideal for container,trailer and rail wagons tracking applications

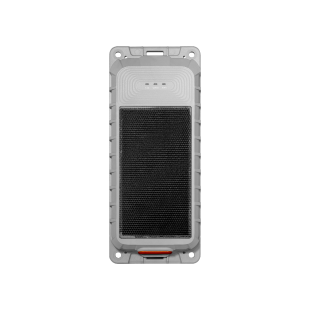

GL601CEU is a ruggedized, self-sustaining LTE Cat1 tracker ideal for efficient management of containers, Trailers, Rail wagons. With its advanced solar harvesting technology, it is able to realize as zero-maintanence throughout a lifecycle of up to 10 years. The equipped rechargeable big battery is catering the multimodal working mode based on transportation needs, ensuring real-time tracking during movement or a low sending frequency when stationary. Utilizing LTE Cat1 technology eliminates concerns about network coverage for inter-regional transportation. Additionally, it features a light sensor for tamper alert, a temperature sensor for ambient condition monitoring, and offers extend functionalities with BLE and Wi-Fi connectivity.

Specifications

LTE Specifications

Operating Band

LTE-FDD: LTE Cat 1: B1/B3/B7/B8/B20/B28A

WCDMA: B1/B8

EGPRS Specifications

Frequency

EFPRS: 900/1800MHz

GNSS Specifications

GNSS Type	All-in-one multi-constellation GNSS Receiver
Constellation Support	GPS, BEIDOU, GLONASS,GALILEO, AGPS
Position Accuracy (m@CEP50)	Autonomous: < 2.5m

General Specifications

Dimensions	212(L) × 86(W) × 30(H) mm 8.35(L) × 3.39(W) × 1.18(H) inch
Weight	572g (20.2oz)
Internal Battery	6 x ICR18500 lithium batteries, 3.7V,12000mAh
Standby Time	Continuous Mode: 1 report/minute(2 Working hours per day): 80 days Sleeping Mode: 1 report/hour: 5 months 1 report/day: 5 years 1 report/day(need to be solar charged regularly): 10 years
Waterproof	IP67
Operating Temperature	-20 °C~+70 °C (-4 °F~+158 °F)
Mounting	Screw / Magnet Mounting Additional secure steel cable
Region	EMEA
Certificate	CE (Planning)

Interfaces

Charging Port	4-pin magnetic connector for charging and configure / FW upgrade
Cellular Antenna	Internal only
GNSS Antenna	Internal only
BLE Antenna	Internal only
WiFi Antenna	Internal only
LED Indicators	GNSS, CEL, PWR

Air Interface Protocol

Transmit Protocol	TCP, UDP, SMS
Scheduled Timing Report	Report messages at preset time intervals
Geo-fences	Automatically reports when entering / exiting Geo-Fence
Low Power Alarm	Alarm when internal battery is low
Battery Health	Report battery condition (%) / status
Temperature Monitoring	Report environment temperature at preset time intervals
Tamper Detection	Alarm when device is removed
OTA Control	Remote configure parameters to change position interval, measurement interval, active/ deactivate sensor, upgrade FW

Technisches Merkmal	Wert
Art.-ID	103554
Zustand	Neu
Modell	GL601CEU
Hersteller	Queclink
Herstellungsland	China
Inhalt	1 Stück
Gewicht	500 g

Specifications

Queclink GL601CEU: LTE CAT 1 solar rechargeable waterproof tracking device supporting BLE 5 .0 with up 10-Year standby time
