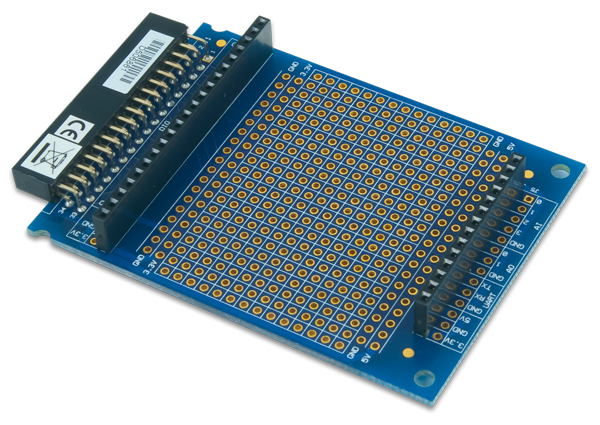

The MXP Wirewrap provides a large 14x21 hole prototyping area on an expansion card compatible with the NI myRIO expansion port (MXP). The MXP Wirewrap functions as an I/O breakout, with bus traces for GND, 3.3V, & 5V on either side of the prototyping area. The MXP Wirewrap's connector is also keyed to ensure correct connection with your NI myRIO.

For more information on the NI myRIO, please visit www.ni.com/myrio.

Features

Designed to interface with the NI myRIO expansion port (MXP)
Provides a prototyping area with 14 x 21 plated through-holes (100 mil spacing)
Buss traces for GND, 3.3V, and 5V

Scope of Delivery

1 x MXP Wirewrap

References

Manufacturer: Digilent Inc.
Manufacturer's article name: Wire Wrap or Protoboard Expansion for NI myRIO
Manufacturer's article number: 6002-210-008

Resources

Product page at Digilent Inc.
Digilent Inc. Support Forum

Other Digilent products are available on request.

Art.-ID	100285
Zustand	Neu
Legacy item ID	2082
Modell	6002-210-008
Hersteller	Digilent Inc.
Herstellungsland	USA
Inhalt	1 Stück
Gewicht	32 g
Netto-Gewicht	32 g
