Product Description

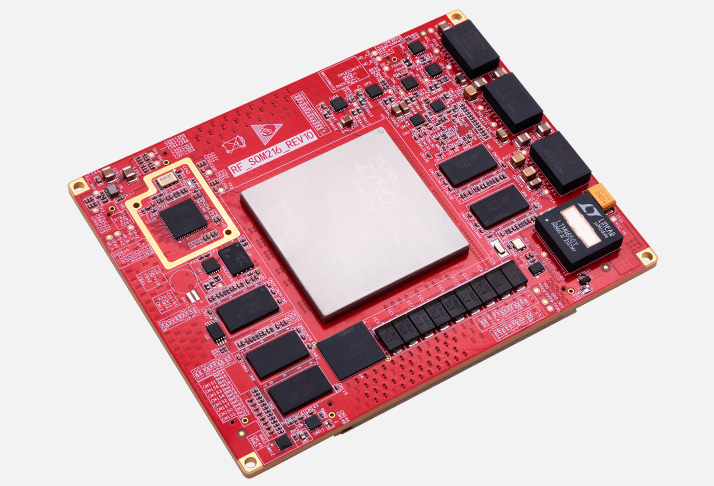

The ACRF49 System-on-Module (SoM) integrates AMD/Xilinx Zynq UltraScale+ RFSoC ZU49DR with high-speed DDR4 SDRAM, dual 512Mbit Quad-SPI Flash chips, and essential peripherals, forming a complete embedded processing platform for high-performance RF applications.

Applications

● 5G RF applications
● phased array system
● Radar system
● Software Defined Radio (SDR)
● spectrum monitoring

Key Features

● AMD/Xilinx Zynq Ultrascale+ RFSoC ZU49DR:
◆ ARM® quad-core Cortex-A53 up to 1.333GHz
◆ ARM® dual-core Cortex-R5F up to 533MHz
◆ 16nm FinFET+ FPGA fabric
◆ 16x 14-bit RF-ADC, up to 2.5GSPS

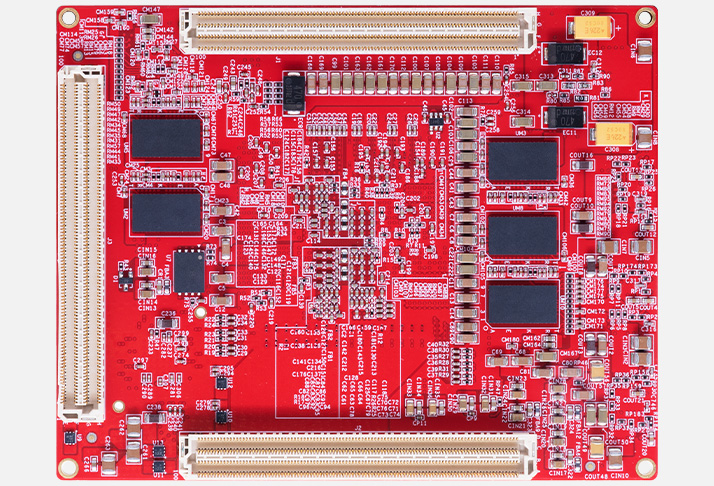

◆ 16x 14-bit RF-DAC, up to 9.85GSPS● Pluggable module with 3 x 400Pin board-to-board connectors
● 5 GByte (64-bit with ECC) DDR4 SDRAM on PS
● 5 GByte (72-bit) DDR4 SDRAM on PL
● 128MB QSPI Flash
● Gigabit transceivers◆ 16 x PL GTY, up to 28.21 Gbps● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 120 x 95 mm form factor

What's Inside the Box

ALINX AMD Xilinx Zynq UltraScale+ RFSoC XCZU49DR System-on-Module/SoM

RFSoC SoM	1

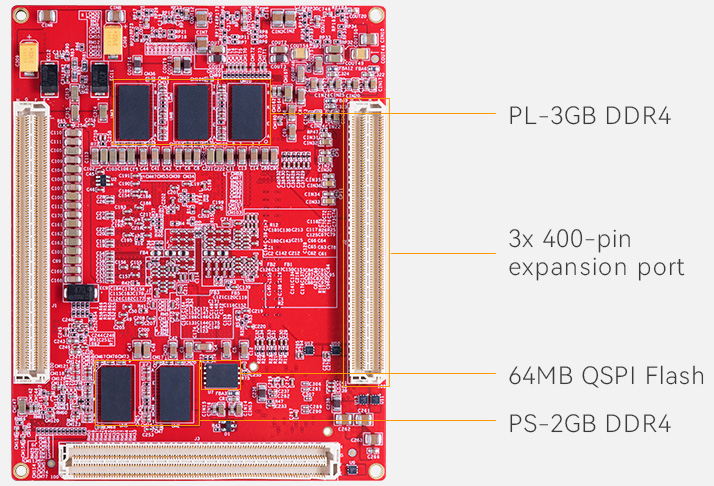

Module Features

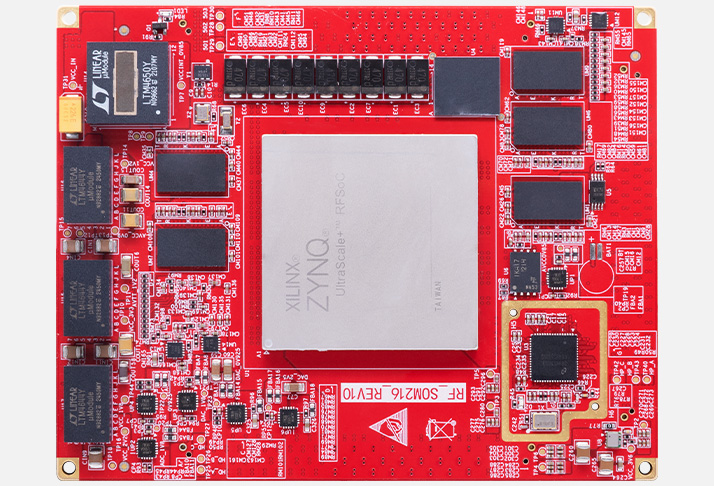

Featuring the AMD/Xilinx Zynq UltraScale+ RFSoC XCZU49DR-2FFVF1760

* We have Zynq UltraScale+ RFSoC development boards AXRF49 that uses this Zynq UltraScale+ RFSoC module, to get started with development straight out of the box.
