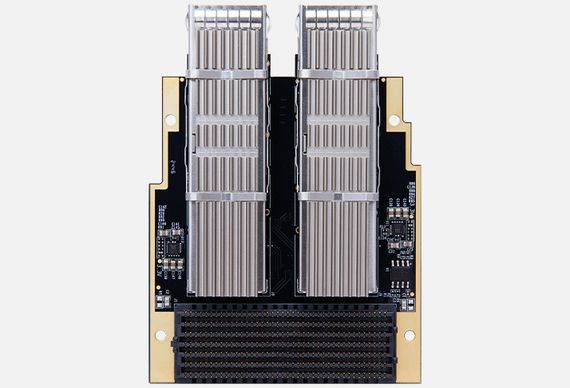

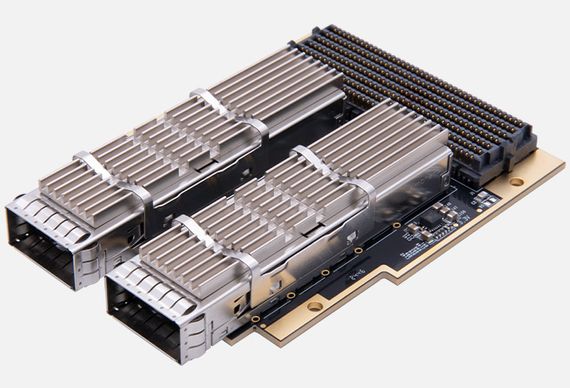

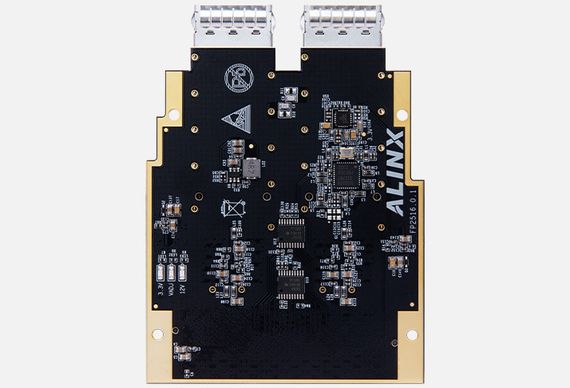

Alinx FP2516 2x200G QSFP-DD Optical Fiber FMC+ Card
The FP2516 is a high-performance, dual-channel 200G QSFP-DD optical transceiver module, featuring 8 transmit (TX) and 8 receive (RX) lanes per channel for 200Gbps aggregate bandwidth, and designed for seamless FPGA integration via a VITA57.4-compliant FMC+ interface.
Référence de l’article: VAR-827003366
Numéro de produit du fabricant: FP2516
Code douane:
Article situé / expédié de : Riedlingen, Allemagne
Product Description
The FP2516 is a high-performance, dual-port 200G QSFP-DD optical transceiver module delivering ultra-high-speed data transmission via eight independent transmit/receive channels per port (200Gbps aggregate bandwidth). Featuring a standard FMC+ interface (VITA 57.4 compliant, ASP-134488-01 connector) for seamless FPGA integration, it supports five reference clocks (GBTCLK0-4) and is ideal for next-generation high-density applications.
FP2516has a standard FMC+ interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
● FMC+ connector (VITA 57.4 compliant, ASP-134488-01 connector)
● 2 x 2×QSFP-DD (up to 200 Gbps)● Dimensions: 78x 69 mm form factor
What's Inside the Box
| FMC Cards | 1 |
|---|
| Caractéristique technique | Valeur |
|---|---|
| ID de l’art. | 102882 |
| État | |
| ID de l'ancien article | |
| Modèle | FP2516 |
| Fabricant | |
| Pays de fabrication | Allemagne |
| Contenu | 1 pièce |
| Poids | 1000 g |
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
